Fully automatic water bath sterilization pot

Sterilization pot, sterilization kettle, high-temperature sterilization pot, cooked food sterilizati

The fully automatic water bath sterilization pot (sterilization kettle) is a high-pressure and high-temperature enclosed pressure vessel. By heating the medium water in a high-pressure environment, the temperature can reach over 130 degrees Celsius, thereby achieving the function of sterilizing and sterilizing sealed packaged food inside the pot. E-mail:sangejixie@gmail.com

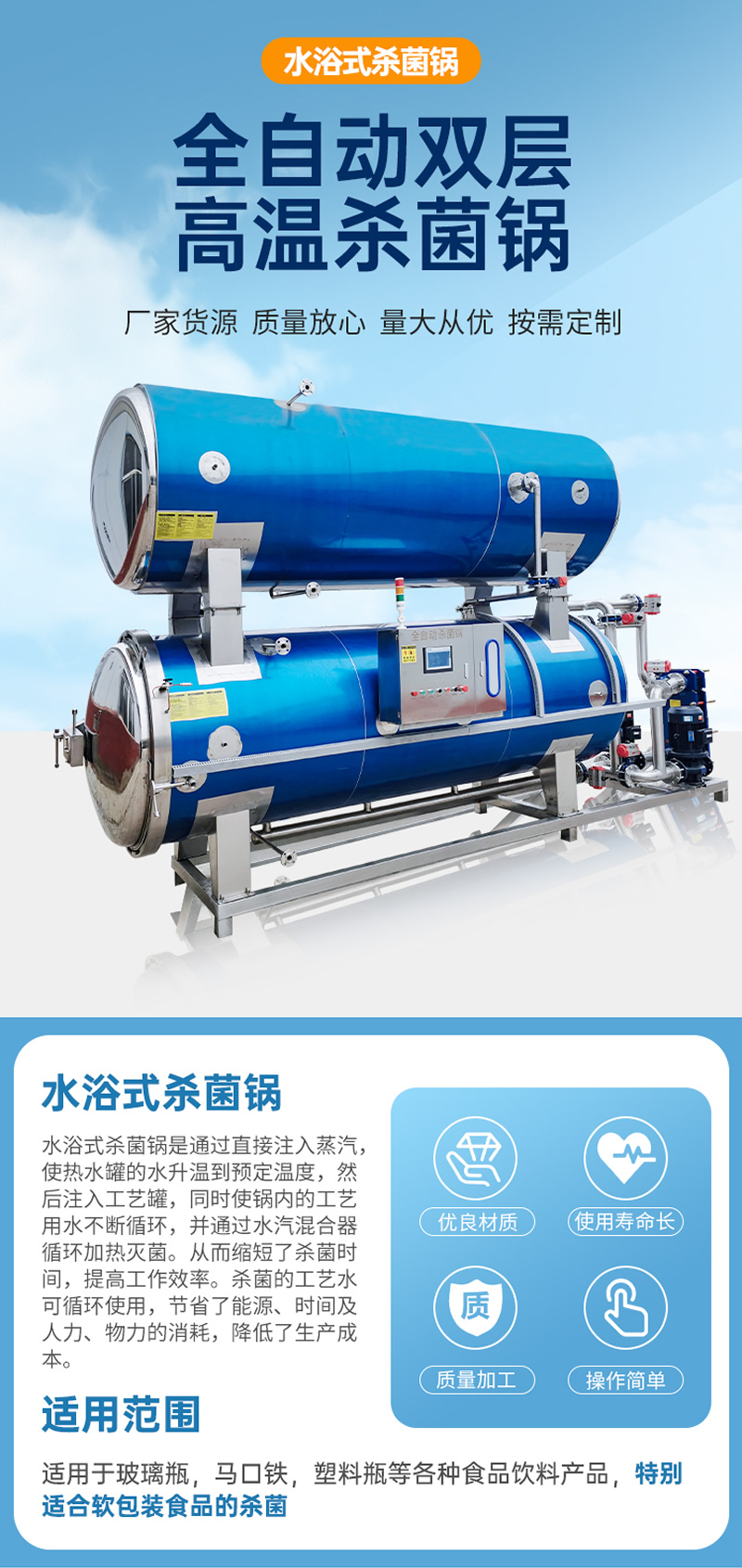

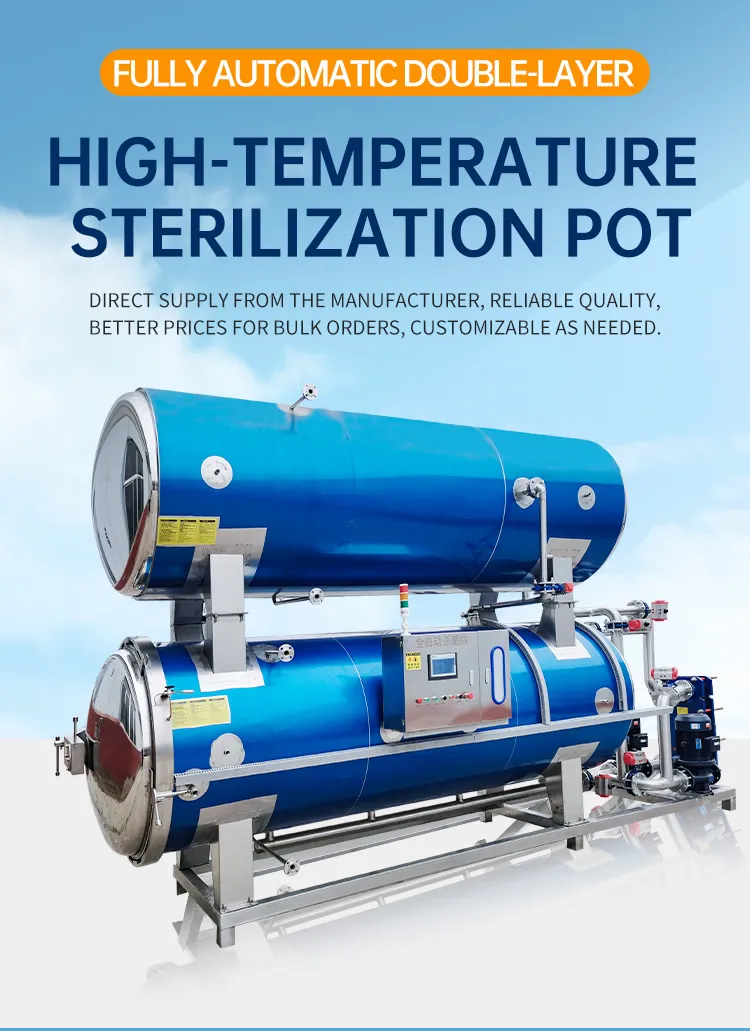

水浴式杀菌锅1水浴式杀菌锅2水浴式杀菌锅3水浴式杀菌锅4

1. Automation control: Advanced automatic control systems are used to accurately control parameters such as temperature, time, and pressure during the sterilization process, ensuring consistency and reliability of the sterilization effect.

2. High temperature sterilization: capable of reaching high temperatures, effectively killing bacteria, viruses, spores and other microorganisms, ensuring the hygiene and safety of the product.

3. Uniform heating: By optimizing the heating system, the temperature distribution inside the pot is uniform, avoiding temperature dead corners and ensuring comprehensive sterilization effect.

4. Multiple sterilization modes: Multiple sterilization modes are available, such as steam sterilization, water bath sterilization, spray sterilization, etc., to meet the sterilization needs of different products.

5. Fast and efficient: The sterilization process is fast, which can greatly shorten the sterilization time of the product and improve production efficiency.

6. Energy saving and environmental protection: Adopting a dual tank energy-saving design, reducing energy consumption, saving sterilization time and water and electricity resources.

7. Large capacity design: With a large capacity, it can process a large number of products at once, suitable for industrial production needs.

8. Safe and reliable: Equipped with multiple safety protection devices, such as over temperature protection, over pressure protection, etc., to ensure the safety of operators and equipment.

9. Easy to operate and maintain: The interface is friendly, the operation is simple and convenient, and the maintenance and cleaning of the equipment are relatively easy.

10. Good material quality: Made of high-quality 304 stainless steel that is resistant to high temperatures and corrosion, ensuring the durability and longevity of the equipment.



三格杀菌锅(杀菌釜)参数表
型号配置桶厚度产量(KG)有效体积(m³)内部体积(m³)功率(KW)整机尺寸(mm)框尺寸(mm)杀菌框/小车数量
500*800单层4mm50-700.10.18201750-950-1200800-300-3001/1
双层2200-950-1870
700*1200单层100-1500.240.4624/362860-1200-14401200-4500-1503/1
双层2600-1200-2270
800*1500单层200-2800.430.7536 750-500-1258/2
双层2900-1300-2600
900*1800单层350-4000.641.14603100-1300-1500900-600-1508/2
双层3260-1400-2740
1000*2200单层500-5500.951.721203690-1560-1680600-1100-1608/2
双层3690-1560-2900
1000*3000单层5mm600-7501.042.71  100-600-17012/3
双层
1200*3000单层600-7501.042.71  800-900-16012/3
双层
1200*3600单层800-10002.54.5 5350-17201650800-900-16020/4
双层5500-1670-3300
双锅并联     800-900-16040/10
二拖一
备注:500/700/800/900/1000型半自动杀菌锅蒸汽用气量是300公斤/小时,1200型是600公斤/小时。

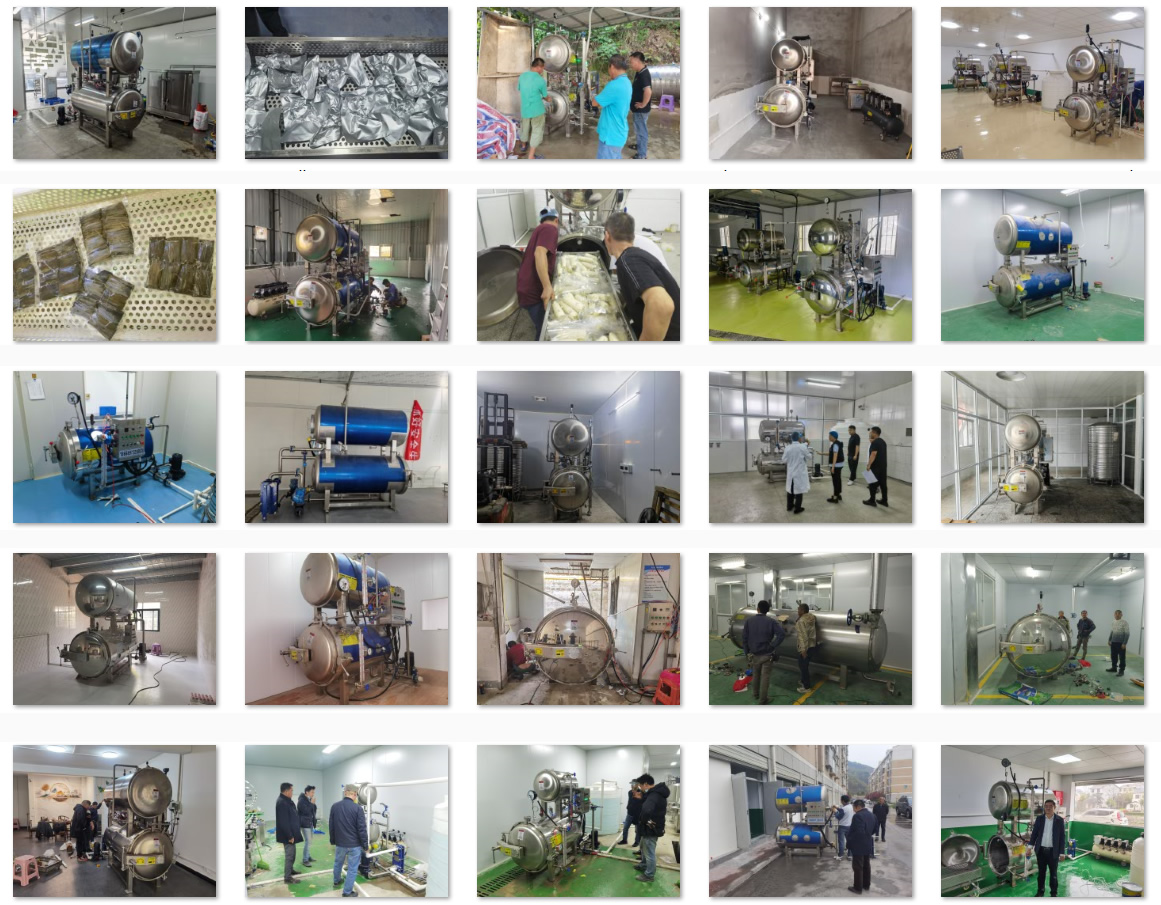

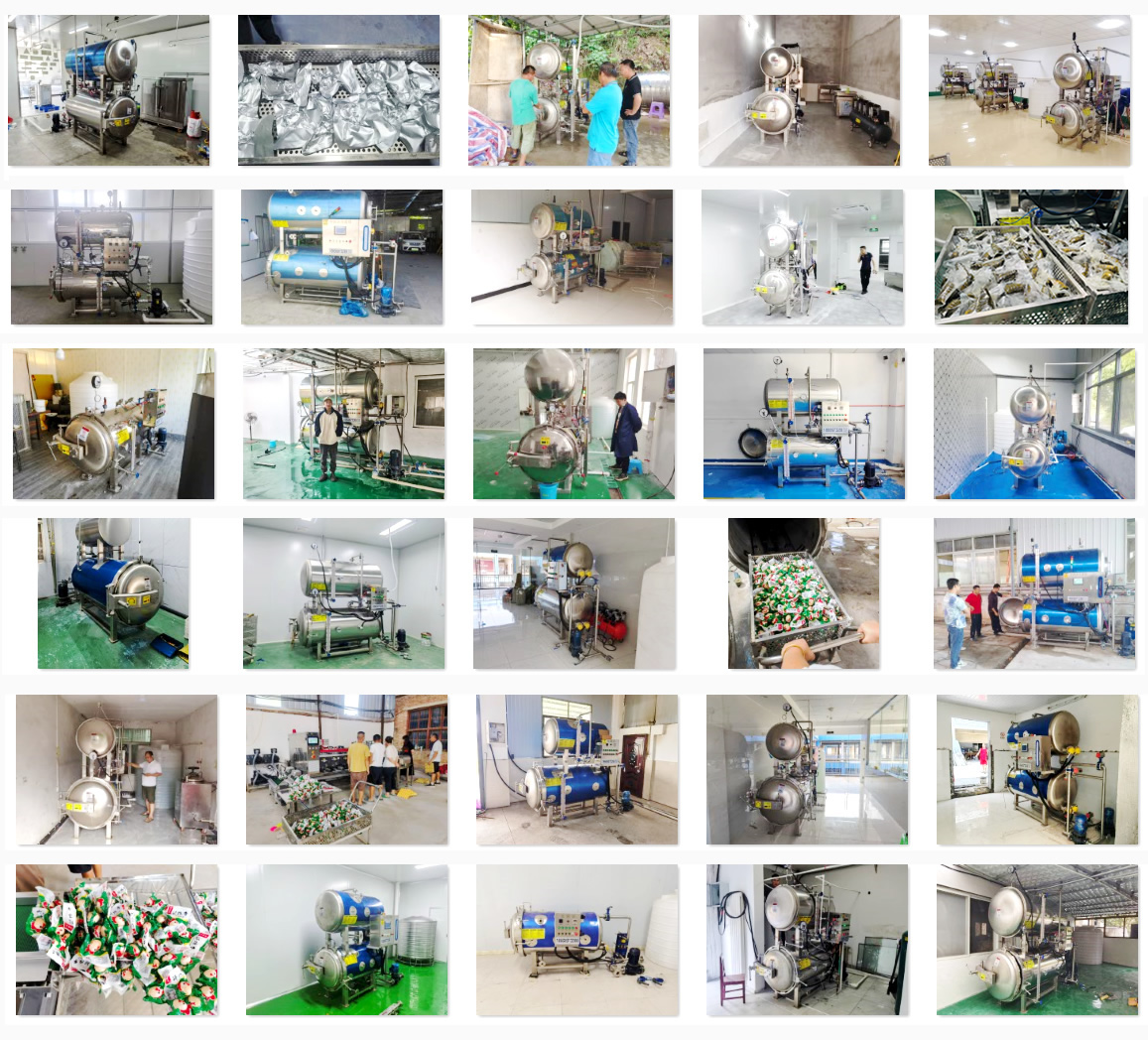

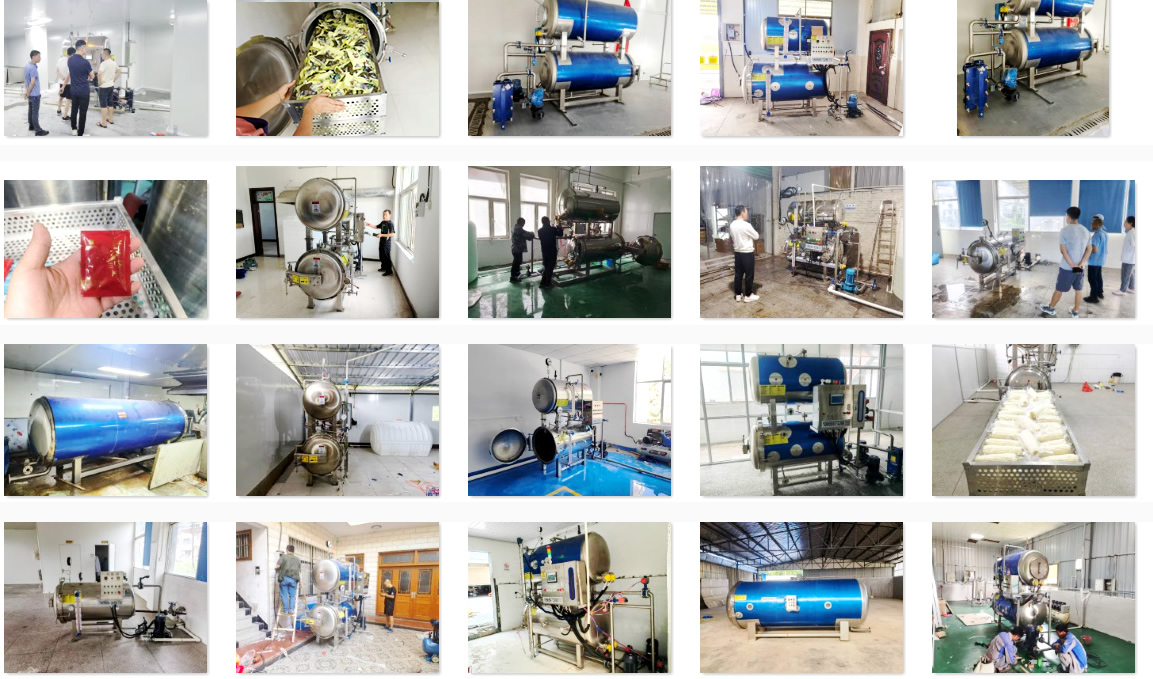

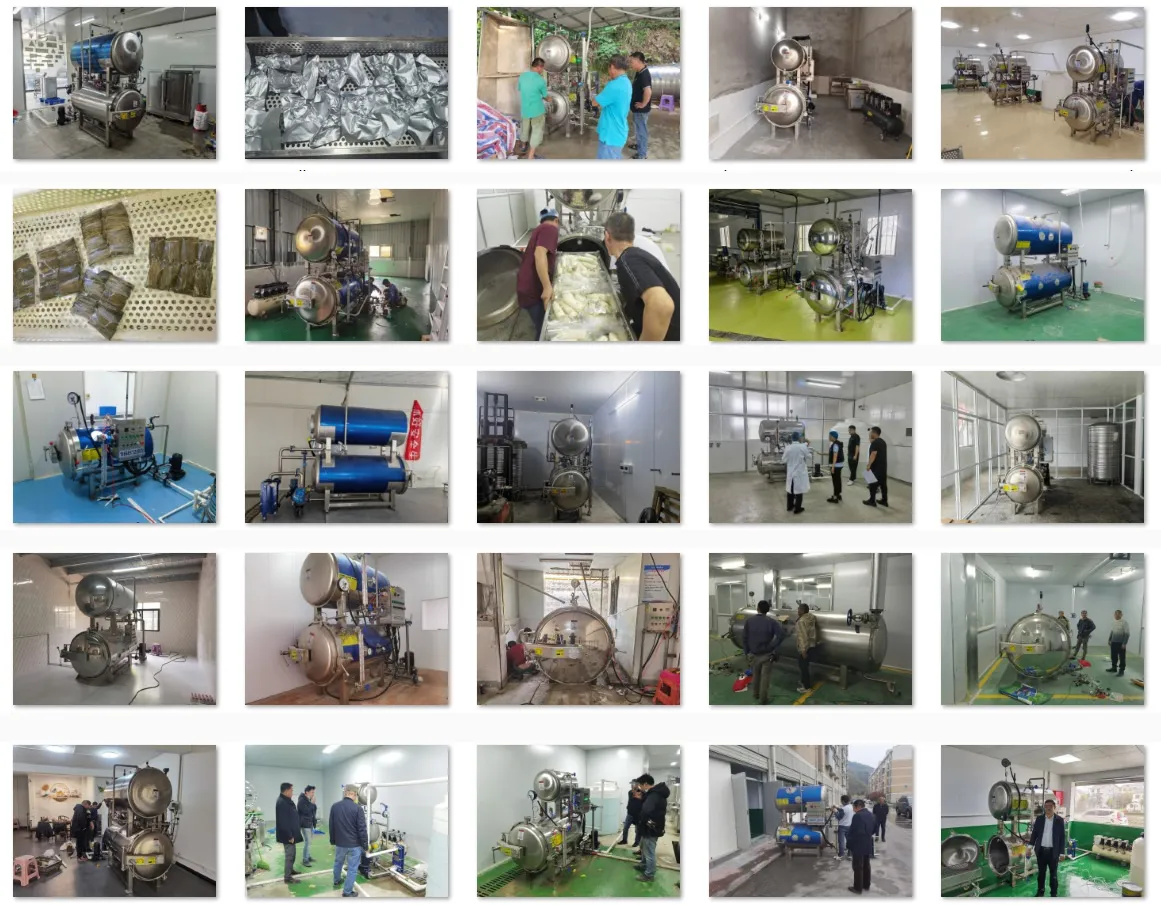

杀菌锅展示案例1杀菌锅展示案例2杀菌锅展示案例3杀菌锅展示案例4
