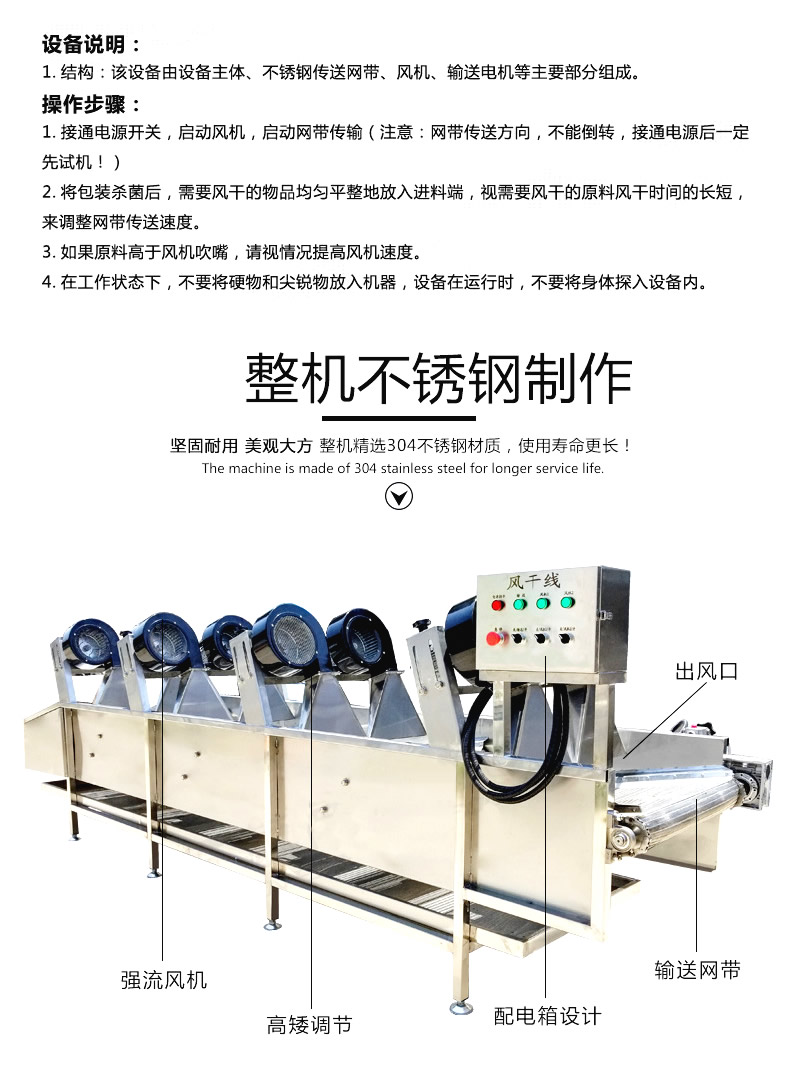

When Zongzi, fruits, vegetables and other products pass through the conveyor belt of the cooling line, high-power fans are everywhere for air drying, which is convenient for subsequent bagging, boxing and other operations. Different products require different lengths, which can be customized according to needs.
1. Ventilation and cooling: By using a high-power fan system to circulate air, the product can quickly dissipate heat and air dry.
3. Adjustable speed: The speed of the conveyor belt can be adjusted as needed to adapt to different products and production requirements.
4. Easy to clean: The design is relatively simple, convenient for cleaning and maintenance, ensuring hygiene.
5. Wide application: It is suitable for cooling and spreading all kinds of food, such as cakes, biscuits, noodles, Zongzi, packaging bags, etc.
6. Improve efficiency: Help accelerate the production process and increase production efficiency.
| Parameters of air drying and cooling line | |
| model | SG-FG-500 |
| External dimensions | 5200*1300*1400mm |
| Number of fans | 16台*0.75w |
| rated voltage | 380v |
| rated power | 12kw |
| production | 500-700kg/h |
| Mesh belt width | 800mm |
| net weight | 500kg |
