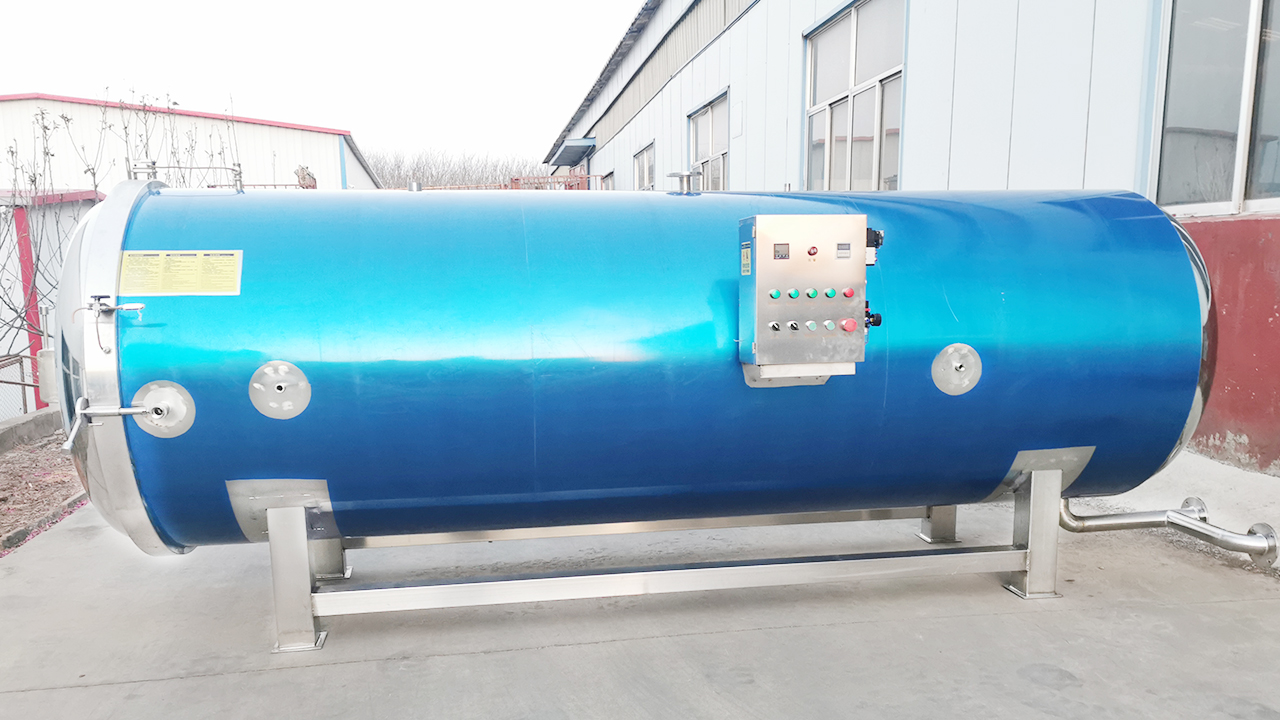

Steam sterilization pot

Steam sterilization pot

Steam sterilization pot, steam sterilization kettle, steam sterilization pot

Sterilization pots (sterilization kettles) generally have two heating sources, one is electric heating and the other is steam heating. Customers can choose different heating methods according to their own situation. E-mail:sangejixie@gmail.com

Steam sterilization pots have many advantages:

1. Preserve food nutrition: Compared to other sterilization methods, steam sterilization causes less damage to the nutritional components of food.

2. Improve food quality: Food that has undergone sterilization treatment can maintain good taste, color, and flavor.

3. Shorten production cycle: Steam sterilization has a fast speed, which can improve production efficiency and reduce food processing time.

4. Energy saving: The steam sterilization pot uses a steam heat source, which can drive other equipment in the factory, saving a lot of energy.




单层高温杀菌锅

A steam sterilization pot is a device that uses the high temperature and pressure of steam to kill microorganisms in food. It mainly has the following characteristics:

1. Efficient sterilization: The high steam temperature can effectively kill bacteria, viruses, and other microorganisms, ensuring the safety of food.

2. Uniform heating: Steam can be evenly distributed in the pot, ensuring even heating of food and avoiding incomplete sterilization.

3. Multifunctionality: Not only can it be used for sterilization, but it can also be used in food processing such as cooking and drying.

4. Easy to operate: Generally, an automatic control system is used, which is convenient to operate and can set sterilization parameters according to needs.

5. Energy saving and environmental protection: The heat energy utilization rate of steam sterilization pots is relatively high, making them relatively energy-saving; Moreover, it does not produce chemical pollutants and is environmentally friendly.

6. Wide applicability: It can handle various types of food, such as canned food, meat products, beverages, etc.

7. Material safety: The pot body is made of materials such as 304 stainless steel, which has good corrosion resistance and hygiene.





Three grid sterilization pot (sterilization pot) parameter table
modelconfigurationBucket thicknessProduction capacity (KG)Effective volume (m ³)Internal volume (m ³)Power (KW)Overall dimensions (mm)Frame size (mm)Number of sterilization frames/carts
500*800single layer4mm50-700.10.18201750-950-1200800-300-3001/1
double-layer2200-950-1870
700*1200single layer100-1500.240.4624/362860-1200-14401200-4500-1503/1
double-layer2600-1200-2270
800*1500single layer200-2800.430.7536 750-500-1258/2
double-layer2900-1300-2600
900*1800single layer350-4000.641.14603100-1300-1500900-600-1508/2
double-layer3260-1400-2740
1000*2200single layer500-5500.951.721203690-1560-1680600-1100-1608/2
double-layer3690-1560-2900
1000*3000single layer5mm600-7501.042.71  100-600-17012/3
double-layer
1200*3000single layer600-7501.042.71  800-900-16012/3
double-layer
1200*3600single layer800-10002.54.5 5350-17201650800-900-16020/4
double-layer5500-1670-3300
Double pot parallel connection     800-900-16040/10
Two dragging one

Note: The steam consumption for the 500/700/800/900/1000 semi-automatic sterilization pot is 300 kg/hour, while for the 1200 type it is 600 kg/hour.


This parameter is for reference only. Please contact customer service for the latest parameters. The specific parameters are subject to actual conditions.
