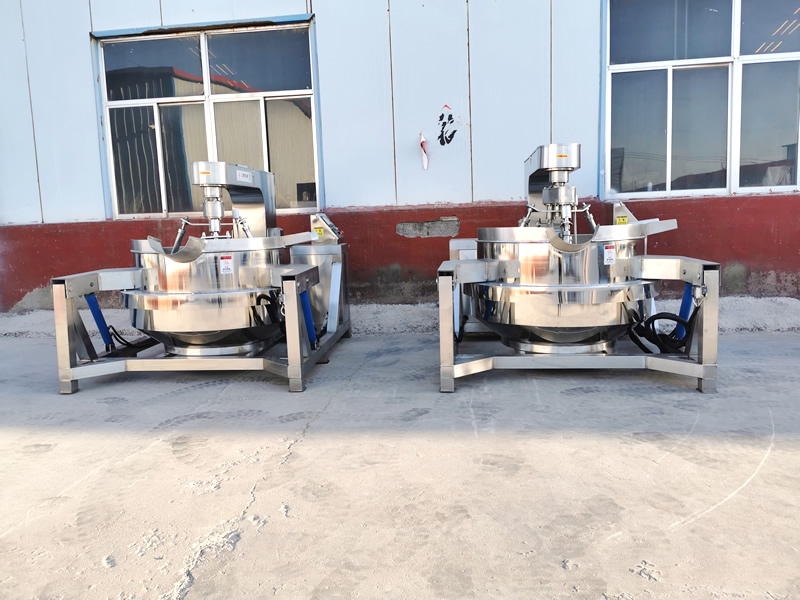

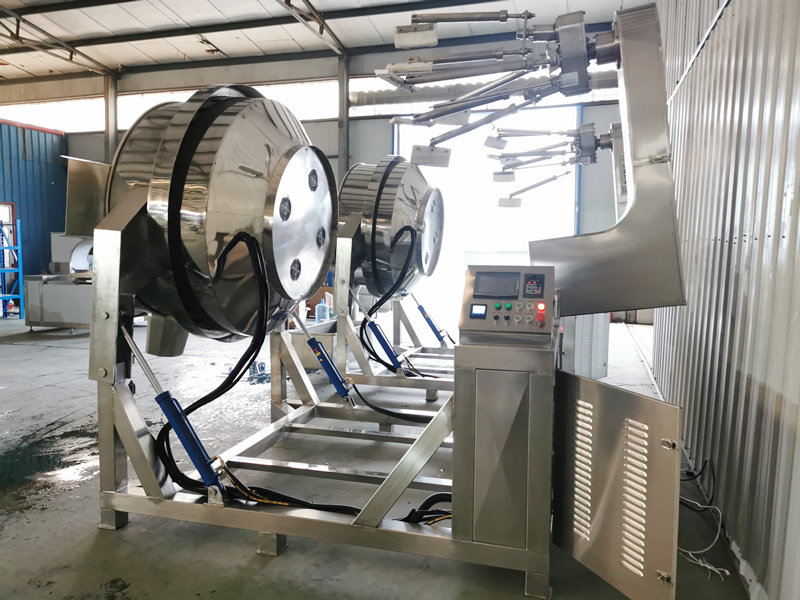

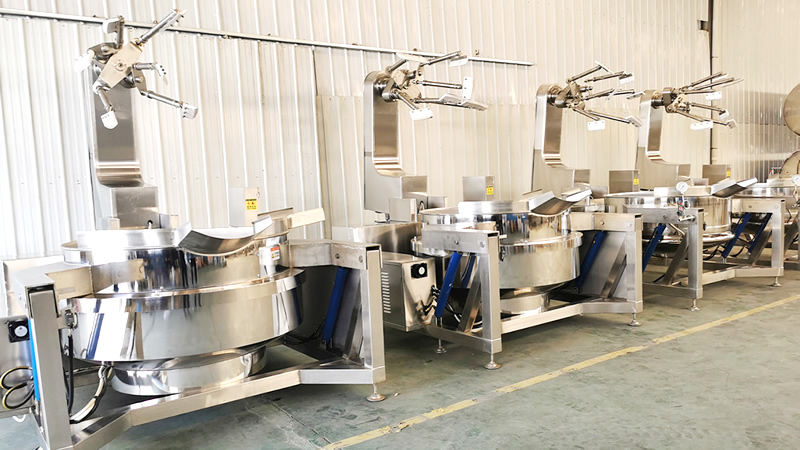

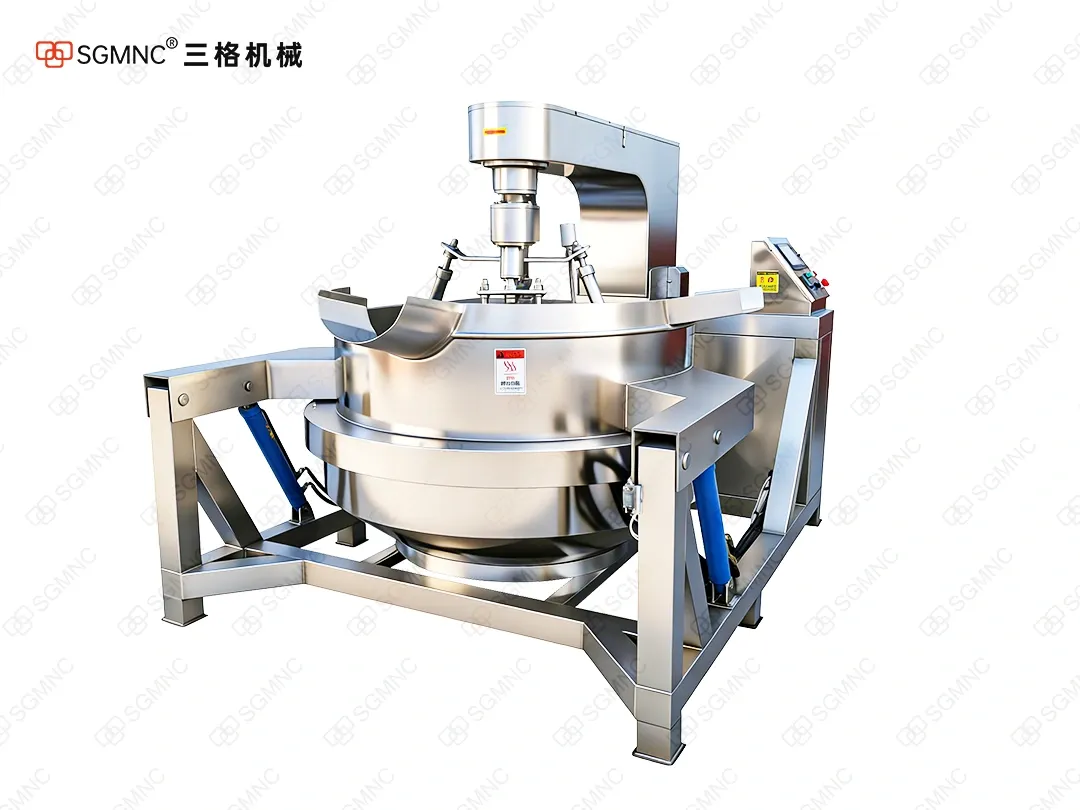

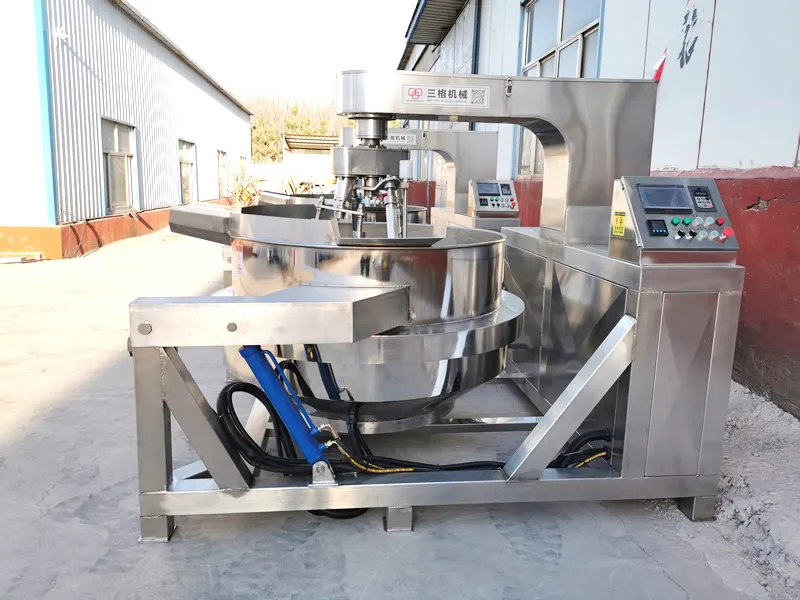

The multi claw fully automatic planetary frying pan is a food processing equipment mainly composed of a pot body, a frame body, a stirring system, a heating system, a speed control transmission device, a stirring shaft, a pot body flipping system, etc. Some of its features are as follows:
-The whole machine is made of stainless steel material, which is durable, corrosion-resistant, and wear-resistant.
-Using pure 304 food grade stainless steel disposable stamping pot liner, the stir fried materials are heated more evenly.

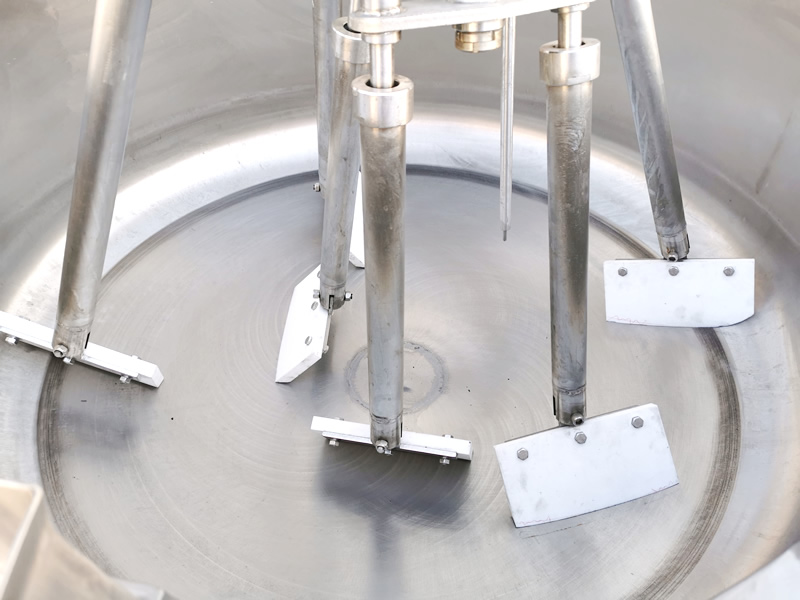

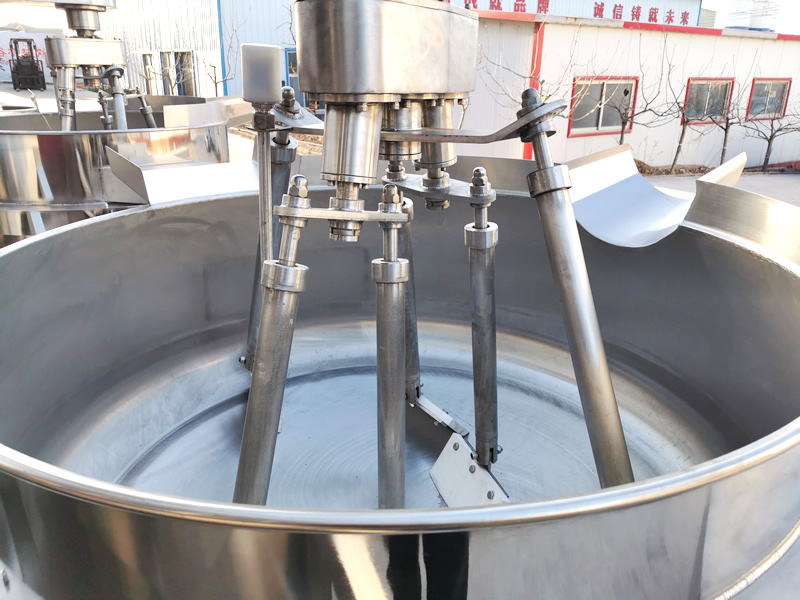

-The multi head and multi claw planetary mixing system utilizes a combination of revolution and rotation to thoroughly mix materials and evenly heat them. The 360 degree bottom scraping, edge scraping and stirring inside the pot can improve the color and taste of the materials.
-The intelligent control system adopts PLC intelligent high-tech control, designs multiple stages of frying formula process, and selects suitable storage frying temperature, frying speed, frying power and other processes according to the properties of different materials. Effectively avoiding errors caused by manual operation.
The multi claw fully automatic planetary frying pan has the advantages of large heating area, high thermal efficiency, fast material heating, uniform heating, and easy temperature control.

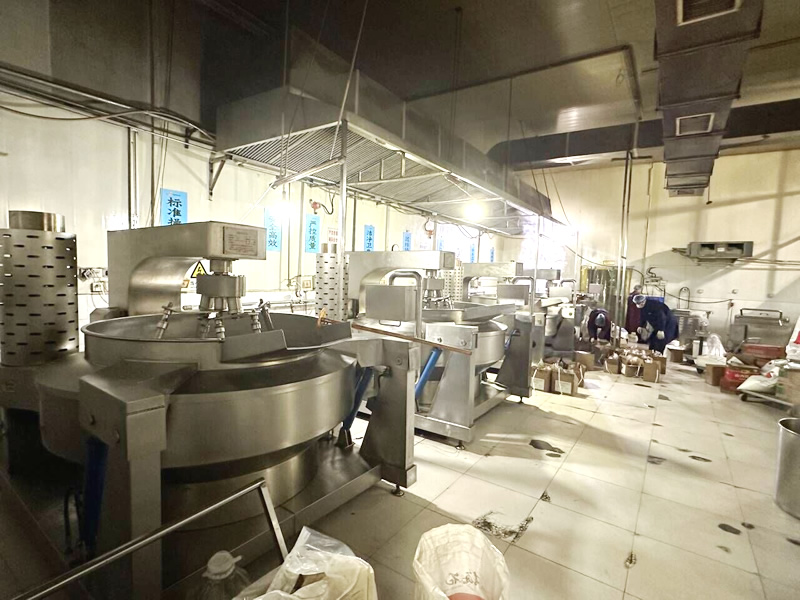

Mostly used for stir frying a large amount of hot pot base ingredients, sauces, and fillings!
| Automatic planetary frying pan parameters | |||||||||
| Fully automatic steam planetary frying pan | model | diameter(MM) | depth(MM) | thickness(MM) | Power | stirring power | voltage(V) | weight | External dimensions |
| 100L | 800 | 350 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 200L | 900 | 400 | 5--3 | 12KW-24KW | 1.5KW | 380 | |||
| 300L | 1000 | 450 | 5--3 | 24KW | 1.5KW | 380 | |||
| 400L | 1100 | 500 | 5--3 | 24KW-36KW | 1.5KW | 380 | |||
| 500L | 1200 | 550 | 5--3 | 36KW | 2.2KW | 380 | |||
| Fully automatic electric heating planetary wok | model | diameter(MM) | depth(MM) | thickness(MM) | Power | stirring power | voltage(V) | ||
| 100L | 800 | 350 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 200L | 900 | 400 | 5--3 | 12KW-24KW | 1.5KW | 380 | |||
| 300L | 1000 | 450 | 5--3 | 24KW | 1.5KW | 380 | |||
| 400L | 1100 | 500 | 5--3 | 24KW-36KW | 1.5KW | 380 | |||
| 500L | 1200 | 550 | 5--3 | 36KW | 2.2KW | 380 | The weight is about 700kg, the volume is about 6 cubic meters, and the wooden box weighs about 40-50kg | 1880*1600*1700 | |
| Fully automatic liquefied gas gas planetary frying pan | model | diameter(MM) | depth(MM) | thickness(MM) | Power | stirring power | voltage(V) | ||
| 100L | 800 | 350 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 200L | 900 | 400 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 300L | 1000 | 450 | 5--3 | 24KW | 1.5KW | 380 | |||
| 400L | 1100 | 500 | 5--3 | 24KW-36KW | 1.5KW | 380 | |||
| 500L | 1200 | 550 | 5--3 | 36KW | 2.2KW | 380 | |||
