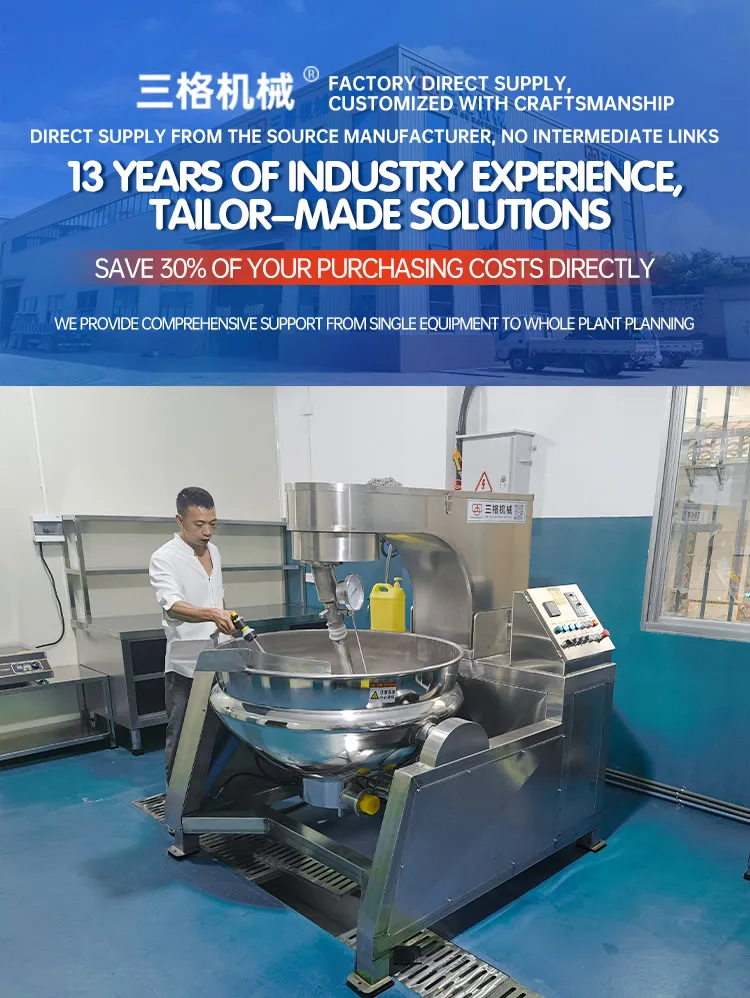

This equipment has a three-layer structure for the bottom and top of the pot, with built-in insulation, circulating oil circuit, fast heating, and energy saving. Thereby increasing production.
The scraping and stirring system completely solves the problem of high viscosity materials' nutritional components not being destroyed, meets green environmental standards, and is an ideal choice for food filling enterprises.

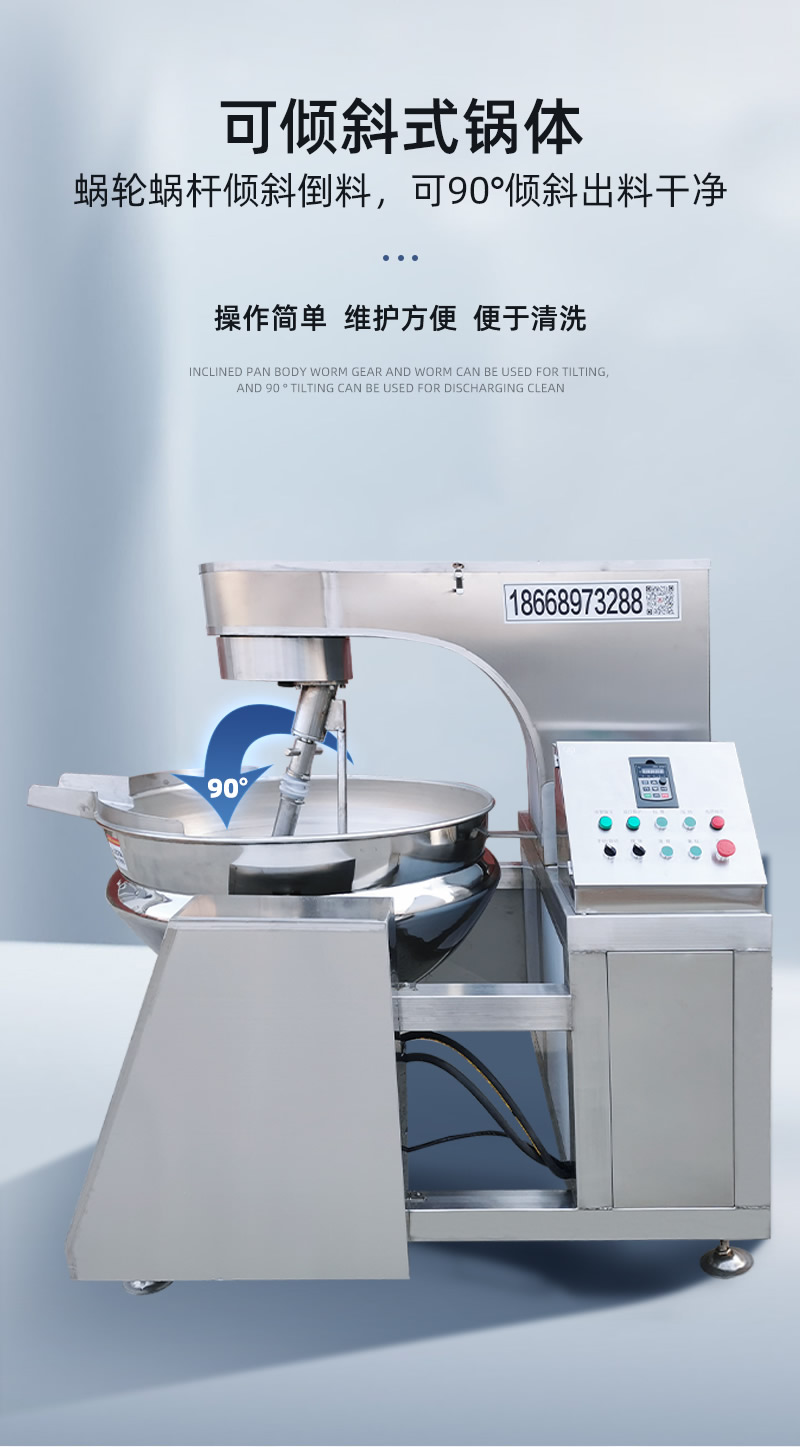

The automatic discharge system adopts circuit control, making it more convenient to use. The pot body can be tilted at any angle, reducing labor and improving production efficiency
-Mixing method: A special inclined transmission is used, and a planetary mixer is in full contact with the pot body to achieve a non integer transmission ratio of transmission revolution and rotation. There are no mixing dead corners in the pot, and it also has non stick characteristics.

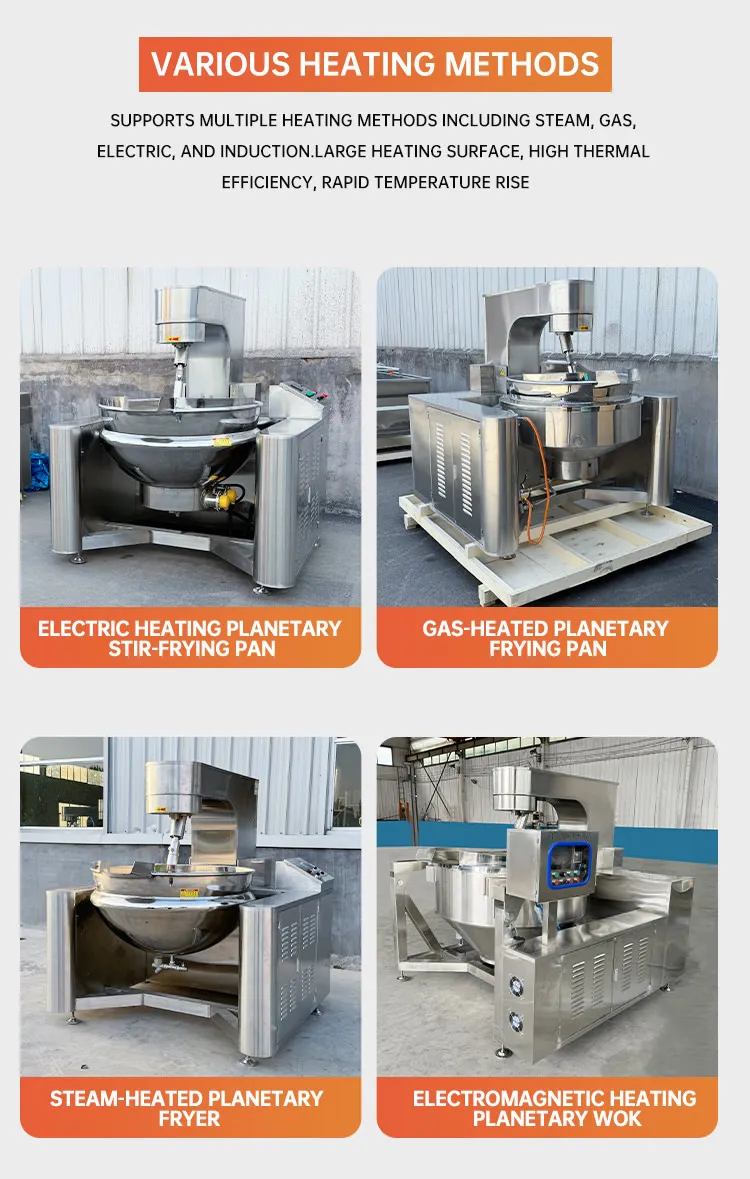

-Heating methods: Various heating forms such as steam, liquefied gas, natural gas, electric heating, electromagnetic heating, etc. can be used.
-Power system: Adopting variable frequency speed regulation power, the operation is smoother.
-Lifting system: using hydraulic lifting, flipping the pot to transport materials, no need to disassemble the mixer, saving manpower and reducing labor intensity.
In addition, different types of fully automatic planetary frying pans have different characteristics and functions, and you can choose the suitable product according to your own needs.

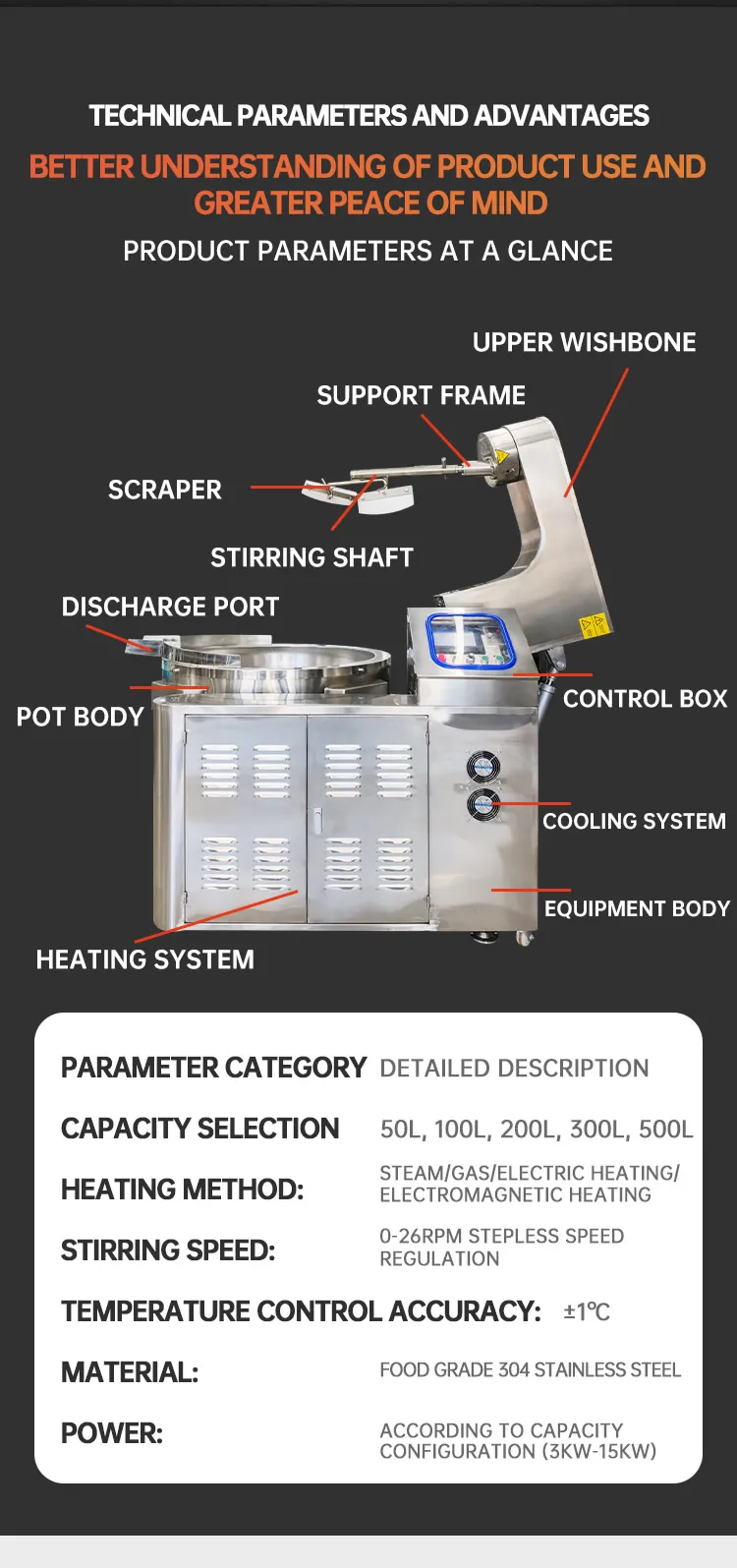

| Automatic planetary frying pan parameters | |||||||||
| Fully automatic steam planetary frying pan | model | diameter(MM) | depth(MM) | thickness(MM) | Power | stirring power | voltage(V) | weight | External dimensions |
| 100L | 800 | 350 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 200L | 900 | 400 | 5--3 | 12KW-24KW | 1.5KW | 380 | |||
| 300L | 1000 | 450 | 5--3 | 24KW | 1.5KW | 380 | |||
| 400L | 1100 | 500 | 5--3 | 24KW-36KW | 1.5KW | 380 | |||
| 500L | 1200 | 550 | 5--3 | 36KW | 2.2KW | 380 | |||
| Fully automatic electric heating planetary wok | model | diameter(MM) | depth(MM) | thickness(MM) | Power | stirring power | voltage(V) | ||
| 100L | 800 | 350 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 200L | 900 | 400 | 5--3 | 12KW-24KW | 1.5KW | 380 | |||
| 300L | 1000 | 450 | 5--3 | 24KW | 1.5KW | 380 | |||
| 400L | 1100 | 500 | 5--3 | 24KW-36KW | 1.5KW | 380 | |||
| 500L | 1200 | 550 | 5--3 | 36KW | 2.2KW | 380 | The weight is about 700kg, the volume is about 6 cubic meters, and the wooden box weighs about 40-50kg | 1880*1600*1700 | |
| Fully automatic liquefied gas gas planetary frying pan | model | diameter(MM) | depth(MM) | thickness(MM) | Power | stirring power | voltage(V) | ||
| 100L | 800 | 350 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 200L | 900 | 400 | 5--3 | 12KW-24KW | 1.5KW | 380/220 | |||
| 300L | 1000 | 450 | 5--3 | 24KW | 1.5KW | 380 | |||
| 400L | 1100 | 500 | 5--3 | 24KW-36KW | 1.5KW | 380 | |||
| 500L | 1200 | 550 | 5--3 | 36KW | 2.2KW | 380 | |||
