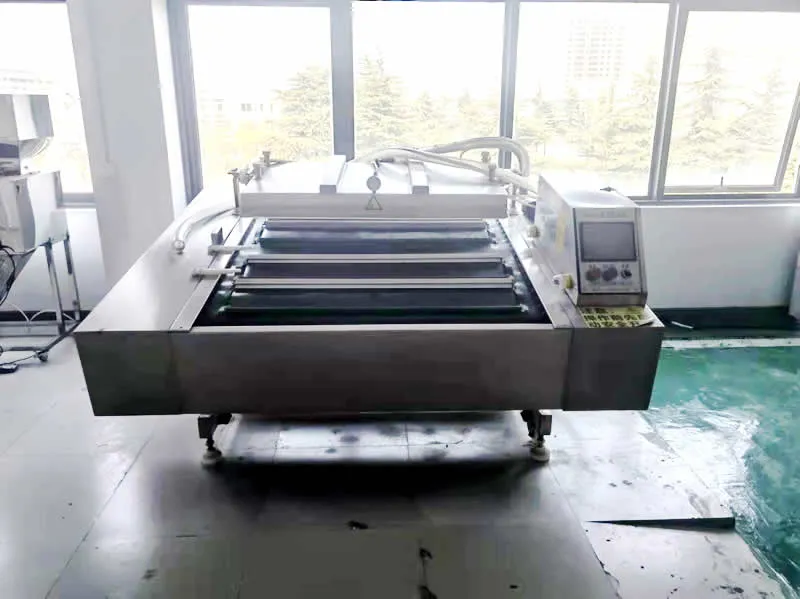

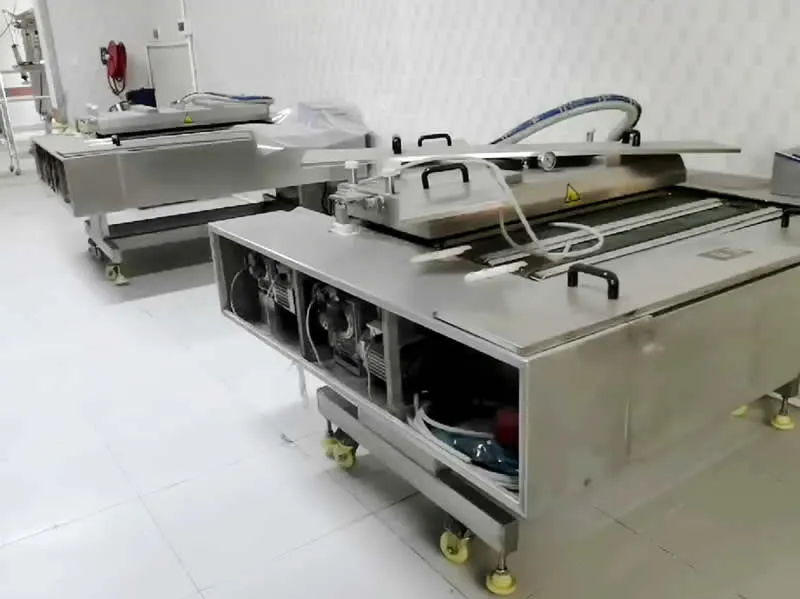

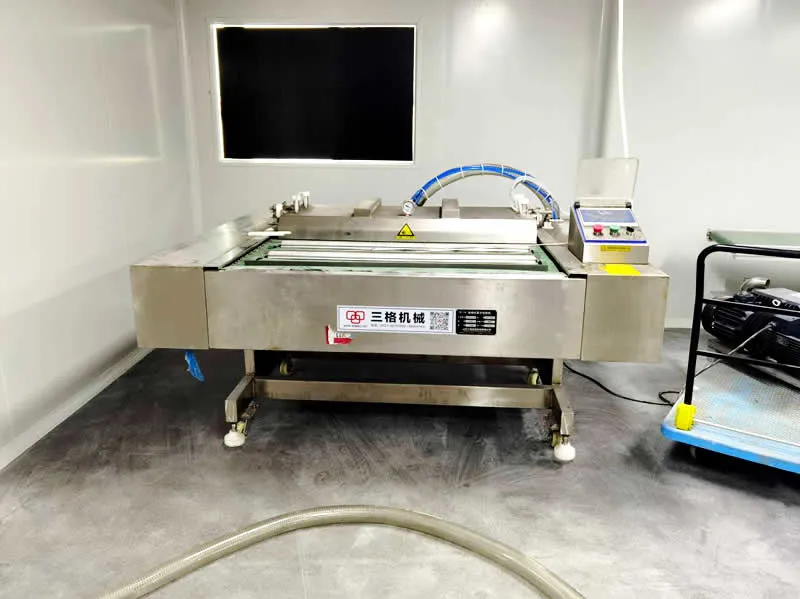

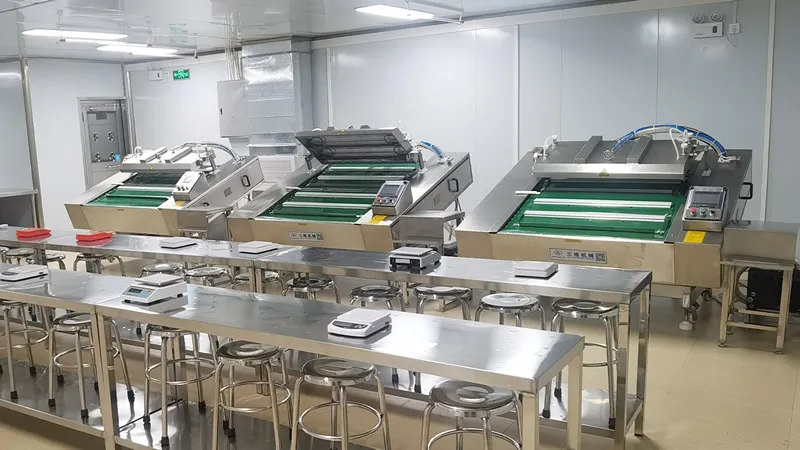

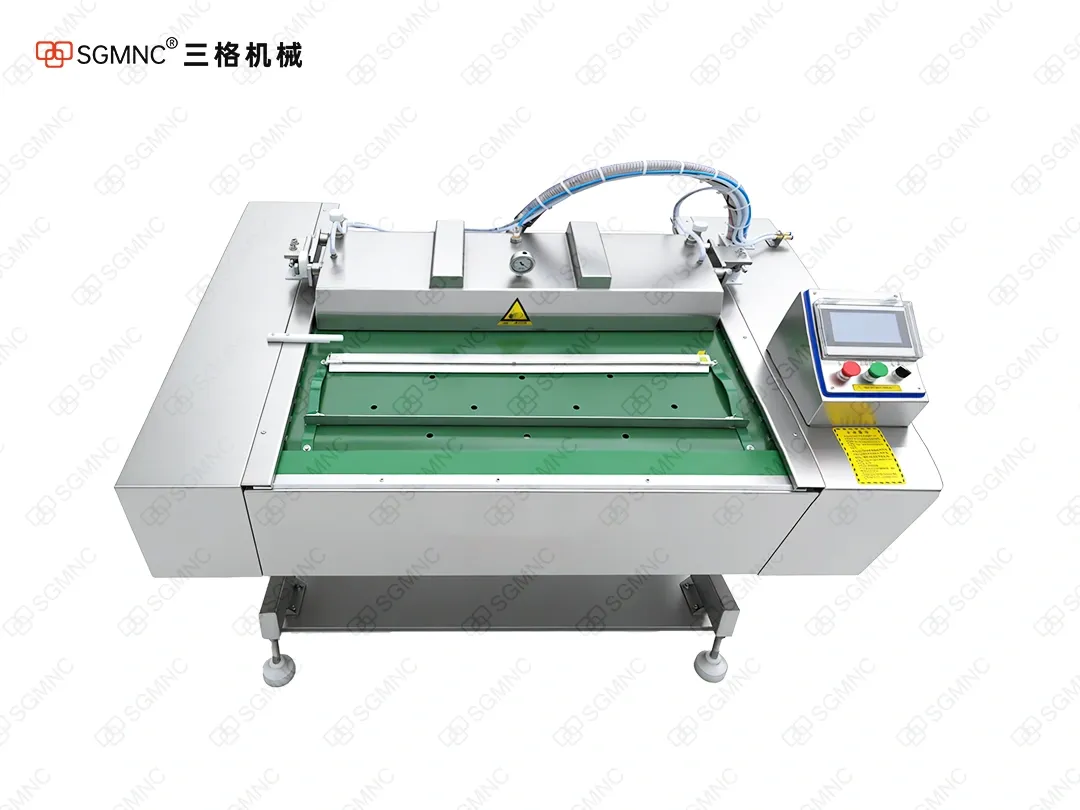

The continuous vacuum packaging machine (rolling vacuum packaging machine) is a vacuum packaging equipment with a high degree of automation. It has the characteristics of high efficiency, sanitation, and safety in use. It is widely used in the food processing industry such as Zongzi, corn, boiled peanuts, sausages, Salted duck egg, leisure snacks and other meat, poultry eggs, aquatic products, fruits and vegetables. The product is transported through a conveyor belt into a vacuum chamber, and the sealing door automatically closes. The vacuum pump starts working, draws out air, creates negative pressure, and after packaging is completed, it is automatically sent out. The conveyor belt rolls into the next batch of products to continue working.
1. Efficient and continuous operation: it can package Zongzi and other products continuously to improve production efficiency.
2. High degree of automation: reduces manual operations and saves labor costs.
3. Precise packaging control: Using an industrial grade PLC control system, the packaging process can be precisely controlled to ensure stable packaging quality.
4. Wide applicability: able to package products of various shapes and sizes.
5. Quick adjustment: Parameter adjustment is convenient and can quickly adapt to the packaging requirements of different products.
6. Compact structure: Small footprint, convenient for production line layout.
7. Stable and reliable: Reasonable design, stable operation, low failure rate.
| Parameters of continuous vacuum packaging machine | ||||||||||
| model | seal | seal dimensions(mm) | Maximum packaging length（mm） | Maximum packaging height(mm) | Work Rate(times/minute) | Voltage | Power | Weight | Chamber Size(mm) | External dimensions(mm) |
| 1100-440 | 440 | 1100 | 340/160 | 90 | 2-10 | 380V/50HZ | 4.5KW | 600KG | 1220*438*110 | 1970*1350*1450 |
| 1100-540 | 540 | 1100 | 420/210 | 90 | 2-10 | 380V/50HZ | 4.5KW | 600KG | 1220*540*110 | 1920*1630*1450 |
| 1100-610 | 610 | 1100 | 500/250 | 90 | 2-10 | 380V/50HZ | 7.5KW | 600KG | 1220*610*110 | 1920*1800*1450 |
| 1100-680 | 680 | 1100 | 570/280 | 90 | 2-10 | 380V/50HZ | 7.5KW | 600KG | 1220*680*110 | 1920*1950*1450 |
| 1100-750 | 750 | 1100 | 640/315 | 90 | 2-10 | 380V/50HZ | 7.5KW | 600KG | 1220*750*110 | 1920*2100*1450 |
